陶瓷片直发器控制方案

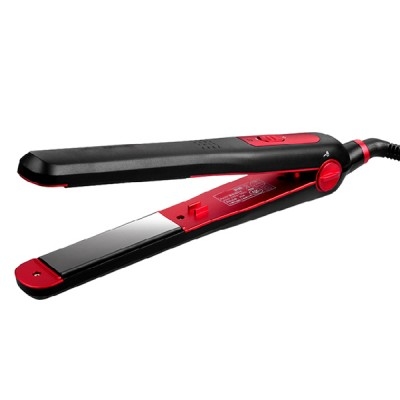

直发器又叫电夹板,英文名为Hair straightener,通俗的叫夹板,是通过电流加热直发器的发热体MCH或PTC或发热丝,传导到铝板或陶瓷板发热。 快速采集陶瓷发热片的温度 5级温度调整 5路指示灯指示工作状况

  • 摄像头:
  • 屏幕类型:
  • 屏幕尺寸:
  • 颜色:
  • 型号: 陶瓷片直发器控制方案

陶瓷片直发器控制方案


方案描述:

直发器又叫电夹板,英文名为Hair straightener,通俗的叫夹板,是通过电流加热直发器的发热体MCH或PTC或发热丝,传导到铝板或陶瓷板发热。 快速采集陶瓷发热片的温度 5级温度调整 5路指示灯指示工作状况

单片机开发

单片机开发

单片机开发

方案详情:

1.电源开关设置

插上电源插头,按ON/OFF开机键开机(其余按键不能开关机),LCD背光等亮,此时默认温度为180℃。(可根据客户要求而定)

2.温度显示功能

开机后发热体会自动升温,一直加热到默认温度180℃停止。在此过程中,LCD左边的温度进度指示会随温度增加显示当前的加热程度,温度范围:80℃到200℃时。(可根据客户要求而定)

3.温度调节设置

以摄氏功能为例,按HIGH,LOW可以对温度进行选择。每按一下HIGH或LOW,LCD上温度显示会增加或者减少5℃(可根据客户要求而定)。此时LCD会出现闪烁,在停止调温后闪烁4下表示确认,则回到当前实际温度显示。温度调节范围在80℃—200℃。

4.自动休眠,自动关机

由于客户开机后长时间不用,系统会进入休眠状态,温度恒定在100℃左右(可根据客户要求而定),半小时再不使用,系统会自动关机,在半小时内使用系统会加热恢复到休眠前的温度。

5.发热体短路、开路保护

若任何一个发热体短路或开路,系统不加热,LCD上显示Err。

6.恒温功率在45W,温度误差+/-3℃。

优点:

⑴ 减少NTC装配不同而出现的温差。

⑵ 由于控温方式不同,无NTC避免的高温时温度过冲现象,系统安全性好。

⑶由于无NTC直发器是检测发热体芯子温度,所以精度大大提高,温度误差+/-3℃。

⑷不需要更换任何元件,可以在110~220V电压下工常工作。

⑸在110V 和220V 电压下工作,加温的功率一样。

功能介绍:

1.温度显示

2.温度调节

3.自动关机

4.摄氏与华氏转换显示

5.自动休眠,自动唤醒

6.发热体短路、开路保护

7.宽电压工作(110~220V)




Control Scheme of Ceramic Flake Straightener

Scheme description:

Hair straightener is also called electric splint. It is commonly called splint. It is heated by electric current through MCH or PTC or heating wire of the direct hair, which is transmitted to aluminium plate or ceramic plate for heating. Quick Collection of Five Grades Temperature of Ceramic Heating Plate and Adjustment of Five Channel Indicators

Details of the programme:

1. Power Switch Settings

Plug in the power plug, press ON/OFF boot button to boot (the rest of the buttons can not switch on), LCD backlight, etc., at this time the default temperature is 180 C. (Depending on customer's requirements)

2. Temperature Display Function

After starting, the heating experience will be automatically heated until the default temperature is 180 degrees Celsius. During this process, the temperature progress indicator on the left side of LCD will show the current heating degree with the increase of temperature. The temperature range is from 80 C to 200 C. (Depending on customer's requirements)

3. Temperature adjustment settings

Taking Celsius function as an example, LOW can select temperature according to HIGH. Each click on HIGH or LOW, the LCD temperature display will increase or decrease by 5 degrees Celsius (depending on customer requirements). At this time, LCD will flicker, after stopping the temperature adjustment, flicker 4 indicates confirmation, then return to the current actual temperature display. The range of temperature adjustment is from 80 to 200 C.

4. Automatic sleep, automatic shutdown

Because customers do not use the system for a long time after booting, the system will enter a dormant state, the temperature is constant at about 100 C (according to customer requirements), half an hour no longer use, the system will automatically shut down, in half an hour use the system will be heated to restore to the temperature before dormancy.

5. Short Circuit and Open Circuit Protection of Heater

If any heater is short-circuited or open, the system is not heated and Err is displayed on LCD.

6. The constant temperature power is 45W, and the temperature error is +/-3 C.

Advantage:

(1) Reduce the temperature difference caused by different NTC assemblies.

(2) Because of the different temperature control methods, the system is safe without the phenomenon of temperature overshoot avoided by NTC at high temperature.

_Because the non-NTC hair straightener is used to detect the core temperature of the heater, the accuracy is greatly improved, and the temperature error is +/-3 C.

(4) No need to replace any components, it can work normally at 110-220V voltage.

_Working at 110 V and 220 V, the heating power is the same.

Functional introduction:

1. Temperature display

2. Temperature regulation

3. Automatic shutdown

4. Display of Celsius and Fahrenheit Conversion

5. Automatic sleep, Automatic wake-up

6. Short Circuit and Open Circuit Protection of Heater

7. Wide Voltage Operation (110-220 V)
