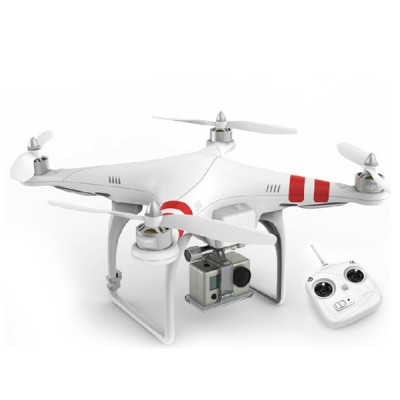

四轴飞行器开发方案

完美的设计,稳定的机械性能,多样化的操作方式带你领略飞翔的感觉。 产品尺寸:Mini,中型,X5C,六轴,九轴 飞行时间:6-8分钟 电池参数:3.7v 300mAh/500mAh锂电池 充电时间:1个小时左右 空心杯电机:起动电流2-3A,转速空载50000RPM

  • 售后服务:
  • 硬盘容量:
  • 内存容量:
  • 型号: 四轴飞行器开发方案

四轴飞行器开发方案


完美的设计,稳定的机械性能,多样化的操作方式带你领略飞翔的感觉。 产品尺寸:Mini,中型,X5C,六轴,九轴 飞行时间:6-8分钟 电池参数:3.7v 300mAh/500mAh锂电池 充电时间:1个小时左右 空心杯电机:起动电流2-3A,转速空载50000RPM

方案详情

四轴飞行器是一种多旋翼飞行器。四个螺旋桨都是电机直连的简单机构,十字形的布局允许飞行器通过改变电机转速获得旋转机身的力,从而调整自身姿态。

飞行器的基本运动原理包含了垂直运动,俯仰运动,滚转运动,偏航运动,前后运动,偏向运动。

小型的四轴飞行器可以自由地实现悬停和空间中的自由移动,具有很大的灵活性。此外,因为它结构简单,机械稳定性好,所以成本低廉、性价比很高。主要的应用是玩具、航模,以及航拍,新的应用也在不断的拓展之中。

提供完整的四轴飞行器设计方案。

功能介绍:

1、一键正倒飞;2、3D翻滚特技;3、3D大动作;4、金鸡独立旋转特技; 5、任意角度抛飞;6、定高功能;7、360度四方向定点翻滚;

sizhoufeixingqikaifafangan


Development Scheme of Four-Axis Vehicle

Perfect design, stable mechanical performance, and diversified operation methods will give you a sense of flying. Product Size: Mini, Medium, X5C, Six Axis, Nine Axis Flight Time: 6-8 Minute Battery Parameters: 3.7V 300mAh/500mAh Lithium Battery Charging Time: About an hour Hollow Cup Motor: Starting Current 2-3A, Speed No Load 50000RPM

Programme details

Four-axis vehicle is a multi-rotor aircraft. The four propellers are simple mechanisms connected directly by motors. The cross-shaped layout allows the aircraft to adjust its attitude by changing the speed of the motor to obtain the force of the rotating fuselage.

The basic motion principles of aircraft include vertical motion, pitch motion, roll motion, yaw motion, forward and backward motion, and bias motion.

The small four-axis vehicle can freely hover and move freely in space, so it has great flexibility. In addition, because of its simple structure and good mechanical stability, it has low cost and high cost performance. The main applications are toys, aeromodelling, and aerial photography, and new applications are constantly expanding.

Provide a complete four-axis aircraft design.

Functional introduction:

1. One key forward and backward flight; 2. 3D roll stunt; 3. 3D big action; 4. Golden Rooster independent rotation stunt; 5. Flying at any angle; 6. Fixed height function; 7, 360 degrees four-directional fixed-point roll;
