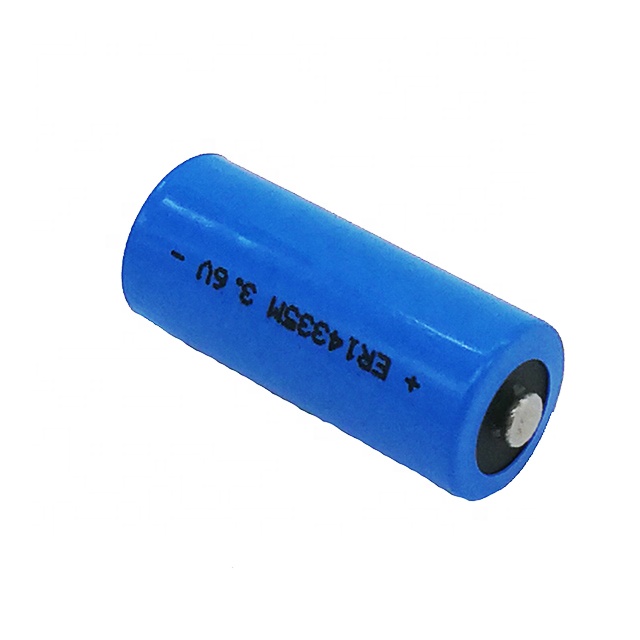

3.6V Long Battery Life ER14335M Lithium Battery Supplier
Product Description
Model Name | ER14335M |
Open Circuit Voltage | 3.66V |
Nominal Voltage | 3.6V |
Cut-off Voltage | 2.0V |
Nominal Capacity | 1300mAh (At 1mA +20℃,2.0V cut off) |
Max. Continuous Current | 200mA |
Typical Max. Pulse Current | 500mA |
Diameter | 14.5(D)*33.5(H)mm |
Operating Temperature Range | -55~+85℃ |
Self-discharge Rate | 1% |
Chemistry | Lithium thionyl chloride |
Welding Technology | Laser |
Cell Type | Primary, non-rechargeable, spiral type |
