Prouduct

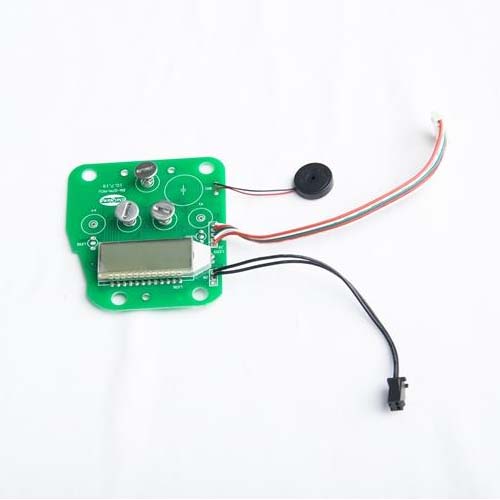

Smart iron control board

  智能电熨斗控制板是一款针对电熨斗产品应用的一种安全、紧凑型控制板,电熨斗控制板使用了专用控制IC、无变压器电压转换、自动断电保护等多项成熟技术。本控制板具有平放30秒,竖放8分钟自动断电、停止加热功能,使用更加安全杜绝火灾隐犯:  即当电熨斗平放静止时,30秒后进入自动断电保护,当电熨斗竖放静止时,8分钟后进入自动断电保护。进入自动断电保护后电熨斗立即停止加热,指示灯闪烁指示。当要使用电熨斗时

  • Model: Smart iron control board

  智能电熨斗控制板是一款针对电熨斗产品应用的一种安全、紧凑型控制板,电熨斗控制板使用了专用控制IC、无变压器电压转换、自动断电保护等多项成熟技术。本控制板具有平放30秒,竖放8分钟自动断电、停止加热功能,

使用更加安全杜绝火灾隐犯:

  即当电熨斗平放静止时,30秒后进入自动断电保护,当电熨斗竖放静止时,8分钟后进入自动断电保护。进入自动断电保护后电熨斗立即停止加热,指示灯闪烁指示。当要使用电熨斗时,可立即上电工作加热。

主要技术参数:

1、额定工作电压/频率:230VAC/50Hz;

2、额定功率:发热盘功率1200W~2200W

3、工作环境温度:-20℃~+60℃

4、定时误差:30秒定时误差小于1秒,8分钟定时误差小于10秒

5、认证要求:SGS,UL,VDE。

小家电控制板通电试验:

1、检查电路接线方式正确与否,确保接线无误后,方可通电;

2、通电后,指示灯亮,电烫斗正常工作。电熨斗正常使用(移动状态,烫衣服)时,指示灯始终处于亮的状态;

3、当电熨斗平放静止时,30秒后进入自动断电保护,电熨斗立即停止加热,指示灯闪烁指示;

4、当电熨斗竖放静止时,8分钟后进入自动断电保护。电熨斗立即停止加热,指示灯闪烁指示;

5、当要使用电熨斗时,只要移动电熨斗,就可立即通电进行加热。

单片机开发


Intelligent electric iron control board is a safe and compact control board for the application of electric iron products. The iron control board uses many mature technologies such as special control IC, transformer-free voltage conversion, automatic power-off protection and so on. The control panel has the functions of 30 seconds, 8 minutes automatic power off and stopping heating.

Use safer methods to eliminate hidden fire criminals:

That is, when the iron is flat and still, it enters the automatic power-off protection after 30 seconds, and when the iron is standing upright, it enters the automatic power-off protection after 8 minutes. After entering the automatic power-off protection, the electric iron stops heating immediately and the indicator flashes. When the iron is to be used, it can be heated immediately.

Main technical parameters:

1. Rated operating voltage/frequency: 230VAC/50Hz;

2. Rated Power: Heating Disk Power 1200W-2200W

3. Working Environment Temperature: -20 ~+60

4. Timing error: 30 seconds timing error is less than 1 second, 8 minutes timing error is less than 10 seconds

5. Authentication requirements: SGS, UL, VDE.

Electricity test of small household appliances control board:

1. Check whether the wiring mode of the circuit is correct or not, and ensure that the wiring is correct before the power can be turned on;

2. After power-on, the indicator lights on and the iron bucket works normally. When the electric iron is in normal use (moving state, ironing clothes), the indicator light is always on.

3. When the iron is flat and still, it enters the automatic power-off protection after 30 seconds. The iron stops heating immediately and the indicator flashes.

4. When the iron is standing vertically, it enters the automatic power-off protection after 8 minutes. The electric iron stops heating immediately and the indicator flashes.

5. When an electric iron is to be used, as long as the electric iron is moved, it can be heated immediately by electrification.
