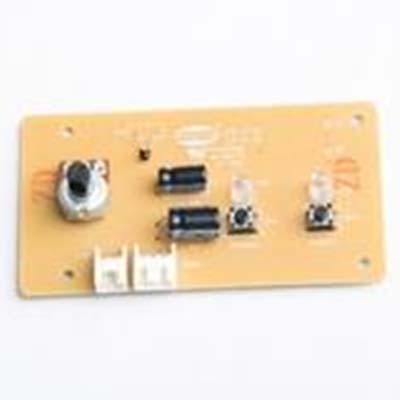

Electronic temperature control grill control panel

电子控温煎烤器控制板多种电源输入:220V/50Hz,230V/50Hz,120V/60Hz等。采用智能控制,温度更精确,避免机械式控温的高温冲。可自动识别食材是否放入,无操作自动断电保护。采用零电流开关技术,产品使用寿命更长。NTC异常保护,产品更安全可靠。蜂鸣器及LED工作状态提醒。规格说明:1、电源电压:AV220V±10%     50/60HZ2、工作环境:

  • Model: Electronic temperature control grill control panel

电子控温煎烤器控制板

多种电源输入:220V/50Hz,230V/50Hz,120V/60Hz等。

采用智能控制,温度更精确,避免机械式控温的高温冲。

可自动识别食材是否放入,无操作自动断电保护。

采用零电流开关技术,产品使用寿命更长。

NTC异常保护,产品更安全可靠。

蜂鸣器及LED工作状态提醒。

规格说明:

1、电源电压:AV220V±10%     50/60HZ

2、工作环境:-10℃~50℃       RH≤90%

3、温度显示范围:0℃~200℃

4、温度控制范围:90℃~190℃

5、温度显示精度:±1℃

6、分辨率: ±1℃

7、输入信号:K型热电偶

8、输出负载:负载继电器  5A/220VAC

9、开孔尺寸:148mm * 70mm

10、面板尺寸:160mm * 80mm

11、深度尺寸:67mm

Electronic temperature control grill control panel


Electronic Temperature Controller Control Board

Various power input: 220V/50Hz, 230V/50Hz, 120V/60Hz, etc.

Intelligent control, more accurate temperature, avoid mechanical temperature control of high-temperature impact.

It can automatically identify whether the food is put in or not, and has no operation and automatic power-off protection.

With zero current switching technology, the product has longer service life.

NTC abnormal protection, product more safe and reliable.

Buzzer and LED working status reminder.

Specification:

1. Power supply voltage: AV220V + 10% 50/60HZ

2. Working environment: - 10 ~50 ~RH < 90%

3. Temperature Display Range: 0 ~200.

4. Temperature Control Range: 90-190 C

5. Temperature Display Accuracy: +1 Temperature

6. Accuracy: +1 C

7. Input signal: K-type thermocouple

8. Output Load: Load Relay 5A/220VAC

9. Opening size: 148mm * 70mm

10. Panel size: 160mm * 80mm

11. Depth Size: 67mm
