热泵热水器专用控制器

热泵热水器专用控制器 本控制板为热泵热水器专用控制器,有三路温度传感器(水温、外机温度、排气温度),三路控制输出(压缩机、化霜、风机),一路告警信号输入(用于高低压力保护等)。主要功能如下:1、温度显示和控制:可以显示水箱温度和外机温度,并将水箱内的水温控制在设定的温度上下限之内。2、自动化霜控制:具有针对热泵优化设计的化霜控制逻辑,能有效地除霜以保证外机在低温下也能正常工作。3、排气温度保护:当

  • Model:

热泵热水器专用控制器

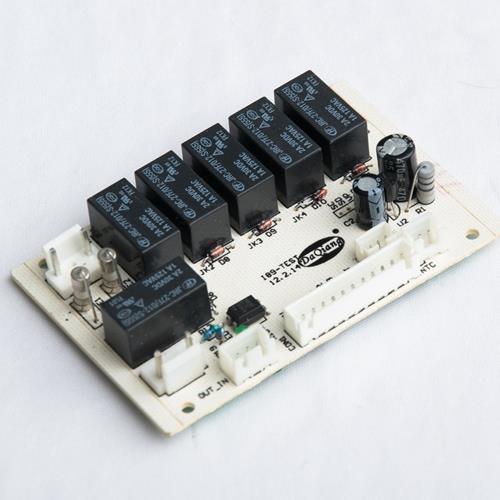

 本控制板为热泵热水器专用控制器,有三路温度传感器(水温、外机温度、排气温度),三路控制输出(压缩机、化霜、风机),一路告警信号输入(用于高低压力保护等)。主要功能如下:

1、温度显示和控制:可以显示水箱温度和外机温度,并将水箱内的水温控制在设定的温度上下限之内。

2、自动化霜控制:具有针对热泵优化设计的化霜控制逻辑,能有效地除霜以保证外机在低温下也能正常工作。

3、排气温度保护:当排气温度过高时,停止机组运行并产生告警信号,并可根据排气温度控制外风机。

4、外部告警功能:一路外部开关量告警信号输入,可设置成常开、常闭或禁用,可设置故障自动恢复次数和时间。

5、分时段运行:控制器有“自动”和“经济”两种运行模式,在“经济”模式下,最多可以设定三个运行时段,只在这些时段内制热,其它时间不制热。

6、其它:实时钟、掉电记忆开关机状态(可设置)、四通阀方向可设置、压缩机开机延时保护、温度传感器故障告警、加氟、测试等。

控制板主要技术指标:

O温度显示范围:-50~150°C

O温度设定范围:0~100°C,可限定设置范围

O电源电压:220V±10%

O使用环境:温度-10℃~50℃,湿度≤85%,无凝露

O输出负载能力:压缩机10A/250VAC,其它2A/250VAC

O温度传感器类型:NTC R25=5kΩ,B(25/50)=3470K

O执行标准:Q/320585 XYK 01-2004 (NA8634-HTDX)

单片机开发



Special Controller for Heat Pump Water Heater

This control board is a special controller for heat pump water heater. It has three temperature sensors (water temperature, external machine temperature, exhaust temperature), three control outputs (compressor, defrosting, fan), and one alarm signal input (for high and low pressure protection). The main functions are as follows:

1. Temperature display and control: It can display the temperature of the water tank and the temperature of the external machine, and control the water temperature in the water tank within the upper and lower limits of the set temperature.

2. Automated frost control: With the defrosting control logic for heat pump optimization design, it can defrost effectively to ensure that the external machine can work normally at low temperature.

3. Exhaust temperature protection: When the exhaust temperature is too high, stop the unit operation and generate alarm signals, and can control the external fan according to the exhaust temperature.

4. External alarm function: The input of alarm signal of external switching quantity along the road can be set to normally open, normally closed or disabled, and the number and time of automatic recovery of faults can be set.

5. Time-division operation: The controller has two operation modes of "automation" and "economy". Under the "economy" mode, it can set up at most three operation periods, heating only in these periods and not in other periods.

6. Others: Real-time clock, power-off memory switch status (settable), four-way valve direction settable, compressor start-up delay protection, temperature sensor fault alarm, fluorination, testing, etc.

Main technical indicators of control panel:

O Temperature Display Range: - 50-150 degree C

O Temperature Setting Range: 0-100 C, which can be limited

O power supply voltage: 220V + 10%

O service environment: temperature - 10 ~50 C, humidity < 85%, no condensation

O Output Load Capacity: Compressor 10A/250VAC, Other 2A/250VAC

Type of O temperature sensor: NTC R25 = 5k, B (25/50) = 3470K

O Implementation Standard: Q/320585 XYK 01-2004 (NA8634-HTDX)
